美国原装新款EPX10000数字频率合成雷达远程探测仪
产地:美国 探测深度/范围:50米/1000米 人气:
美国原装新款EPX10000数字频率合成雷达远程探测仪

商品介绍

美国原装新款EPX10000数字频率合成雷达远程探测仪
产地:美国
探测深度:50米
探测范围:1000米
可随时上门了解查看产品
全国免费热线:400-0659-178

【美国EPX技术,目前国内外先进的大范围扫描仪,探宝探矿,内置探地雷达进行二次搜索,探测更精准排除虚假信号更强,新款铜质遥感信号传导更稳定
EPX SCAN MASTER(EPX)

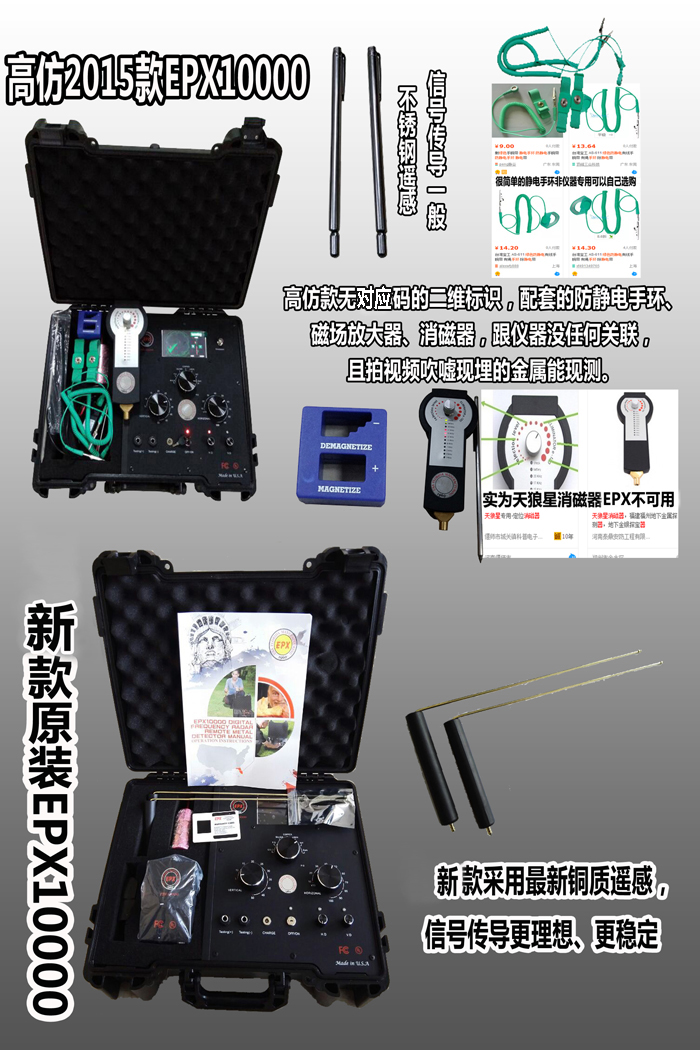

原装EPX10000:①具备对应码的二维标和二维卡,市面上高仿EPX10000无二维标识;②高仿EPX10000说是可以现埋金属现测,拍的视频都是人为控制的请谨慎,所有远程金属探测仪都是电磁波原理都必须搜索金属的氧化信号的,并且定位都有一定偏差,所以就算目前先进的新款EPX10000也不是十全十美的。
各大新闻媒体公告
一、 控件安装
注意:在日常操作之前,电池必须充满电!如果未充电的话,刚会引起EPX10000发生故障。若显示异样,这可能是首次提示电池电压太低,必须充电。若电池充一整晚上电以后,电池仍无电量,则需要更换电池或者充电器,或者交流电源输出口无电。若电池充进了部分电,可能需要更换内置电池。一块新的充满电的电池能供EPX10000工作约8小时。
打开扫描仪之前,把发射器放在地面上,把传感器天线连接到发射器的对应的插孔内。在发射器打开的时候。不要插拔传感器,如果那样做的话,将会对机器造成损坏。
使用EPX10000扫描以前,首先做好仪器的所有必要连接。
1、将传感器连接到扫描仪的testing(+)testing(-)插孔上,并将传感器的探头插入泥土
2、将信号发射的发射天线装置在对应的接口上.
3、用电源钥匙旋转“On/Off旋钮,打开电源。此时,在液晶显示区域、电源指示灯、横向微调、纵向微调指示灯点亮。
4、此时,EPX10000正在扫描所选的任何元素。在开始探测程序之前,请先运行3-5分钟,这将在后面进行简单解释。
5、操作结束后,记住关闭EPX10000的电源。为了方便使用,该仪器的电池需要使用连接在仪器电源线上的小充电器充电。

二、技术参数
1、探测深度范围:5-50m
2、探测距离范围:100-1000m
3、充电电池:连续工作8小时
4、电压:12VDC
5、温度范围:450C一850C
6、工作湿度:0~95%(非冷凝)
7、16位处理器.40MIPS速度—160MHz
8、32位DDS合成芯片。输出波形
9、数字频率合成X20PLL自动频率稳定器,0.1Hz
10、彩色液晶显示屏,分辨率为480x320像素
11、净重:6.6KG毛重:10.5 KG
12、产品尺寸:47X37X13.5cm

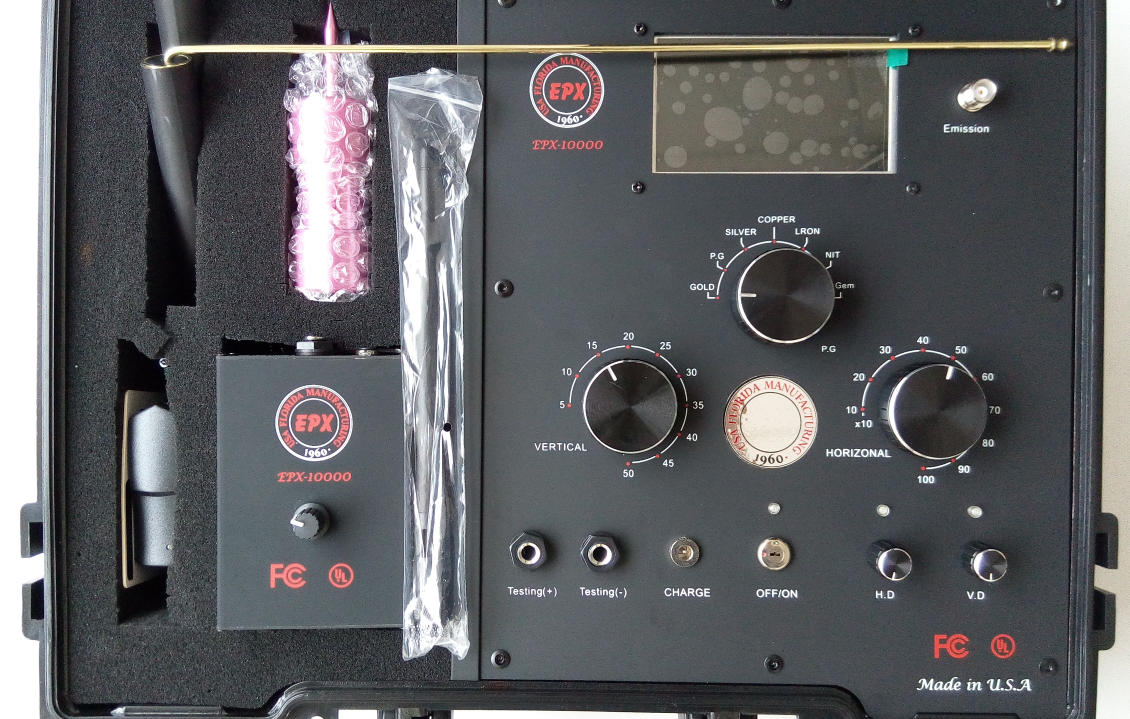

三、控制面板介绍

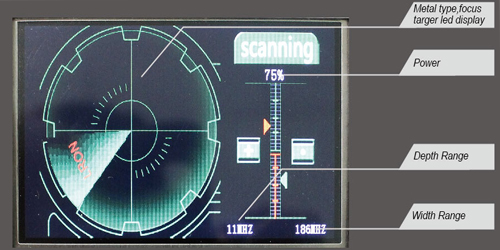

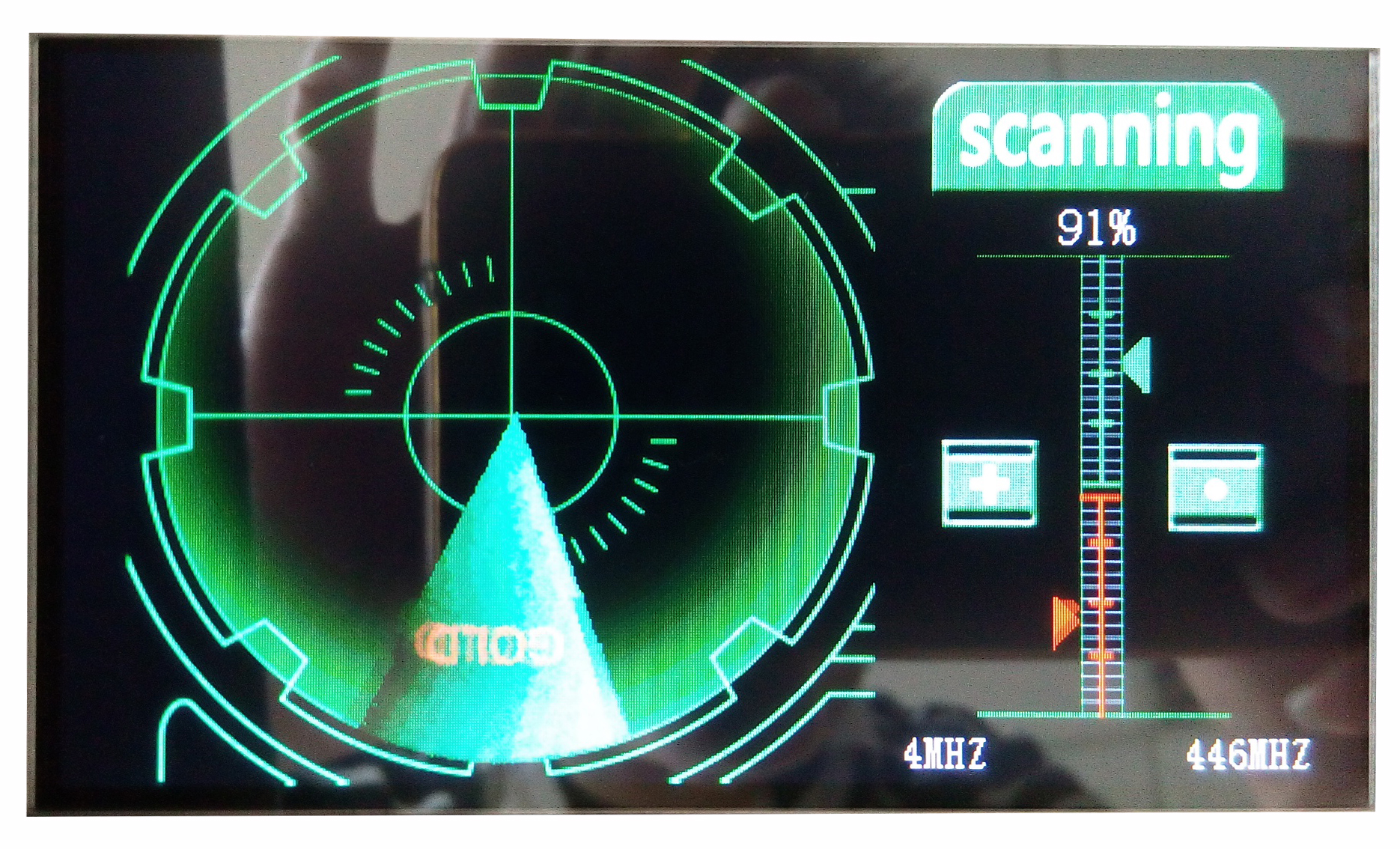

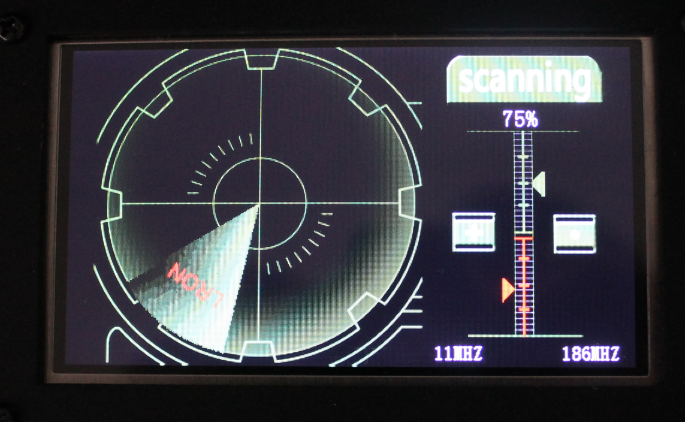

雷达LCD扫描显示

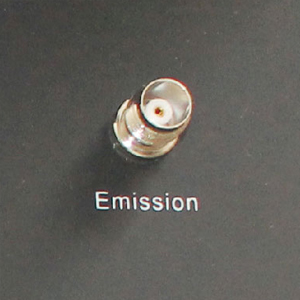

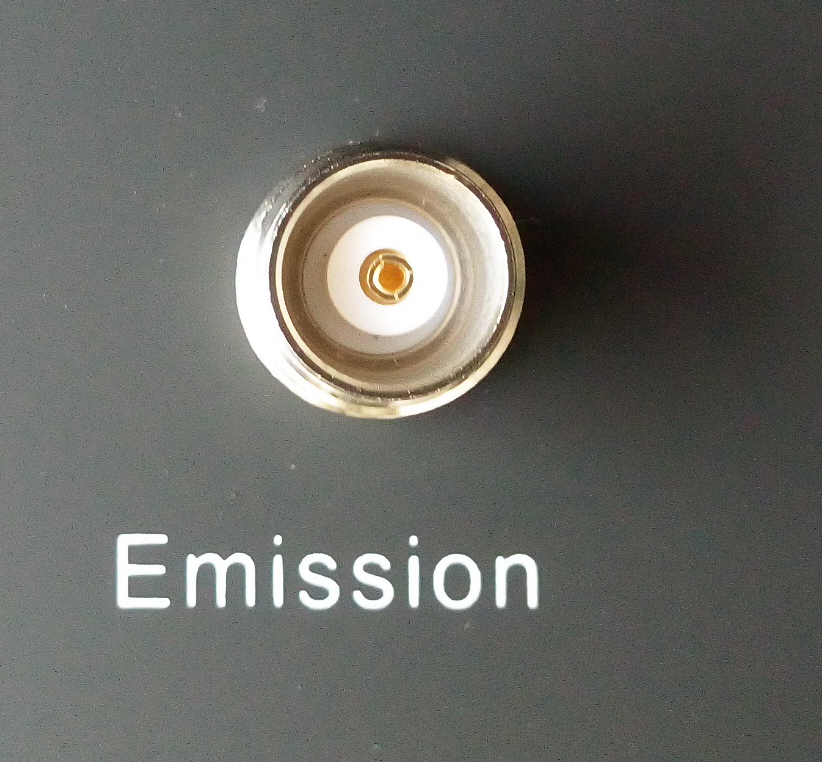

信号发射

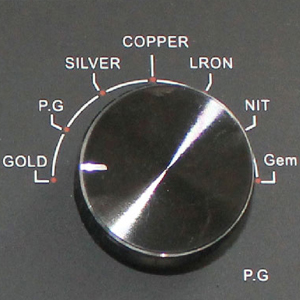

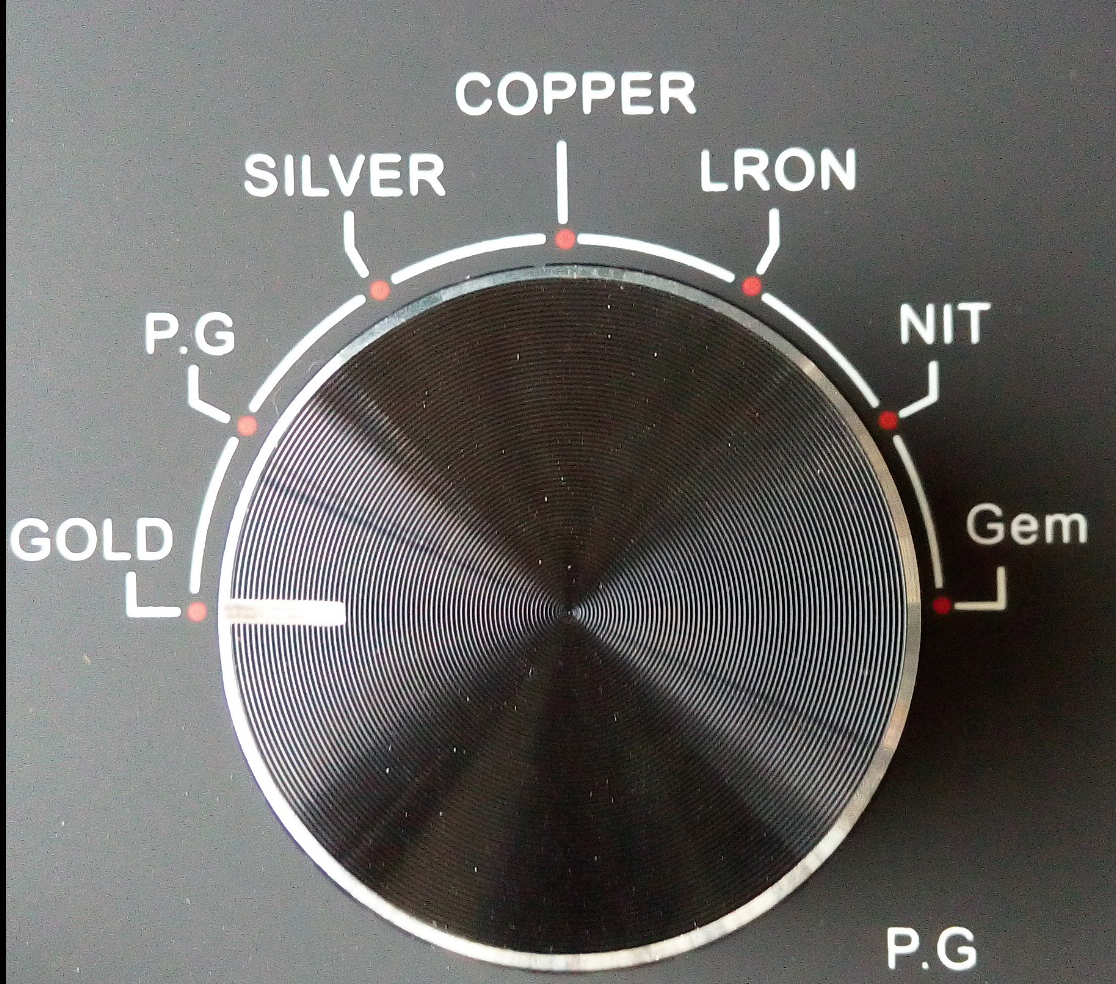

金属种类选择

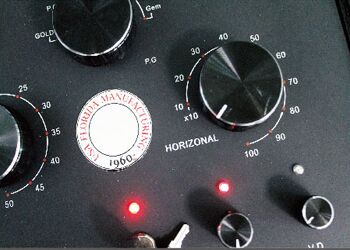

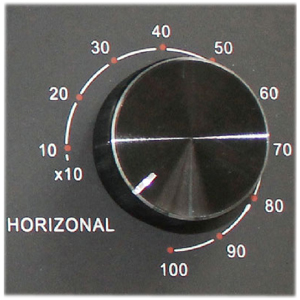

范围调节

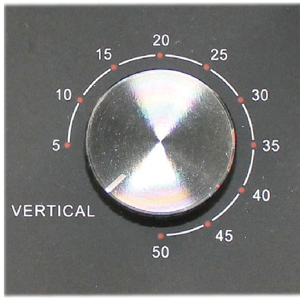

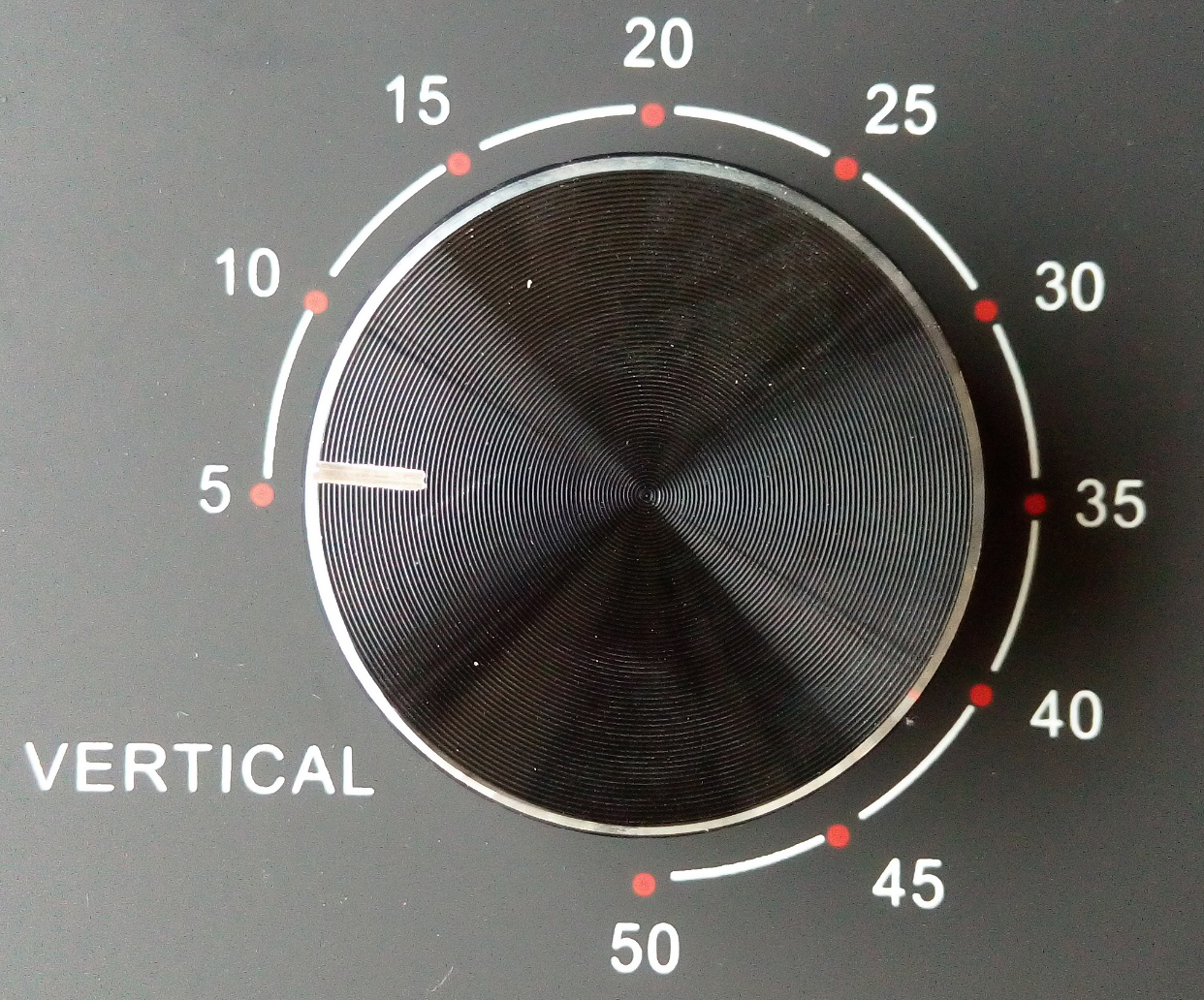

深度调节
四、配件介绍

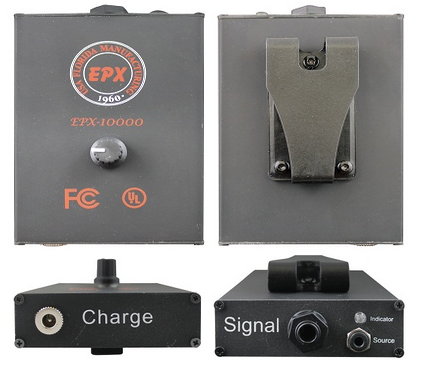

接收器——接收器在面板的上面是旋钮开关,它们分别是耳机和天线棒插孔。不使用时,将天线棒从接收器上拔掉!若天线棒插在接收器里保存,则将导致电池漏电。

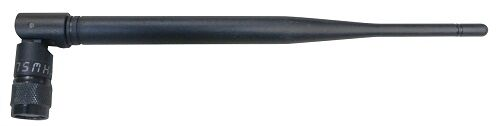

接收天线棒——天线棒旨在向操作人员指出他/她已经步入功率传感器和目标之间的传输线。正常情况下,手持天线棒要稳定和平衡,齐腰高度,以及稍微位于操作人员前方。手持天线棒时,天线棒应指向前方,相互平行,且相隔8-18英寸距离。每一个人需要找到适合自己的距离。这需要试验和出错才能找到。请记住,在操作该装置方面,沉着放松的人会比紧张僵硬的人做得好!当你进入射频能量线,测到东西的时候.天线棒将自然交叉,且雷达扫描指针会停顿在一个位置。天线交叉和雷达扫描停顿下来的时候,你看到了胜利的曙光就到来了。


接收器信号增强器——用于增强信号。


防伪识别

五、操作方法
分子频率探测器的关键点在于握住接收杆的方法,以及身体的位置和走法。
使用者必须以放松姿势站立,两脚稍微分开,双臂紧贴身体但不要太紧。握住接收杆时,手掌和手腕不宜太用力,使其在手中自动达到平衡状态,并始终相互平行。手握杆时,使其与地面平行,以增加其敏感性,或稍微向下倾斜5-8°,
达到更好的平衡状态(若你是的分子频率探测的新手)。
至关重要的一点是练习持杆的方法,直到两杆不再相互“移开”。
接收杆的平衡完成后,操作人员应学会走路的方法,一步一步,同时保持两杆平衡。这是另一种试错法:步伐必须保持正常速度,坚定而均匀。每一步跨过同样的距离,否则两杆将失去平衡。耸肩时会导致两杆失去平衡。应保持两肩在同一高度。尝试练习,并注意保持这些条件。
接收杆的握法、体位和行走练习应遵循测试目标试验的要求,操作者应将测试目标物体放在地面上,观察接收杆的反应。
一旦“开始扫描” 消息出现在屏幕上,开始在距离EPX10000探测器3米处循环走动,保持接收杆处于平衡状态并插入电源模块中。

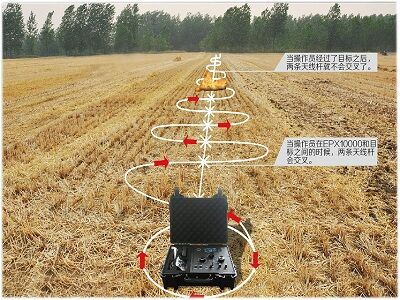

    若存在目标物体,当我们走在目标物体和EPX10000地面探测器之间的传输线上时,两杆就会完全交叉。此传输线对于单个目标物来说通常是15厘米宽。我们可以通过仔细检查判断其是否为稳定信号。这样操作者需要返回、放松、再次移动到传输线上。若接收杆每次都会交叉,然后我们可以按照例2中的信号追踪图追踪目标信号。当操作员穿过埋藏的物体后,将无任何显示。目标物就位于***后一次杆交叉位置和无交叉显示的位置之间。金属探测器可用于对目标物体进行精确定位。参照我们的示例,继续练习以取得更好的效果。
SCANMASTER研究中心花了多年时间试验各种理论、想法和装置,才开发出该传输器,它体积小,功能强大,能够通过土壤远程传输射频(RF)信号。发出的信号360?全方位导入土壤。正是由于该电感能量,才使目标可以探测。
该扫描仪发射的信号通过功率传感器进入地下。如果所找的目标在量程范围之内,则信号被目标吸收。指示棒插入功率放大器,使接收器电路变得完整。该电路是通过操作人员的人体电容和功率模块的电感部件形成的。当操作人员行走穿过扫描仪和目标之间的传输线路时,该电路将发挥积极作用。来自传输线路的电感射频能量跟操作人员的电路电感电容交互作用。此时,正常反应是指示棒相互吸引。这实际上是向操作人员传达信息:所找的目标在扫描仪的量程范围之内。
该扫描仪的量程随许多因素变化而变化。首要的***重要的变量是目标大小。其次是土壤情况(存在电解质)和地下时间长短。另一个因素是目标周围土壤的化学变化,该因素可以增强扫描仪的操作性能。对于易于氧化的目标,无论是物体本身还是其容器,都将发出更强信号。由于氧化因素,目标放大扫描仪传输信号的潜力将会更大。范围内有目标,当你的脚开始跨入能量线,在正常情况下,天线棒将相互吸引。在正常情况下,一个单个目标的能量线宽度为20英寸。
一旦确定能量线,下一步是采用S行测量或者是三角测量法测量目标。





INTRODUCTION
Dear customer,      Thank you for purchasing remote digital frequency synthesizer remote metal detector offered by SCANMASTER research center. As a manufacturer, we started in 1960 and have been committed a long period of research and development work, and have made all efforts to produce this type of high-quality EPX9900 EPX10000 detectors, hoping to promote the market on a treasure hunt. This is a scientific instrument, it must follow the instructions for use of every detail. It is strongly recommended to study the instructions carefully in order to understand the operation of the machine, and then to the site to practice using the target sample in order to get some experience. We wish you the best detection results.

LIST OF PARTS

Technical parameters
1.Detection depth range:5-50m
2. Detection distan cerange :100-1000m
3.Rechargeable battery:8 hours of continuous work
4.Voltage:12VDC
5.Thtemperaure range:45℃ to 85℃
6.Humidity:0~95%(non condensing)
7.16 bit processor speed,40MIPS –16MHz
8.32 bit DSS synthesis chip,wave from output
9.Digital frequency synthesisX20PLL,automatic frequency stabilizer,0.1MHz
10.Color LCD display,a resolution of 480 x 320 pixels
11.Net weight:6.6kg,Gross weight:10.5kg
12.Product size:47X37X13.5cm

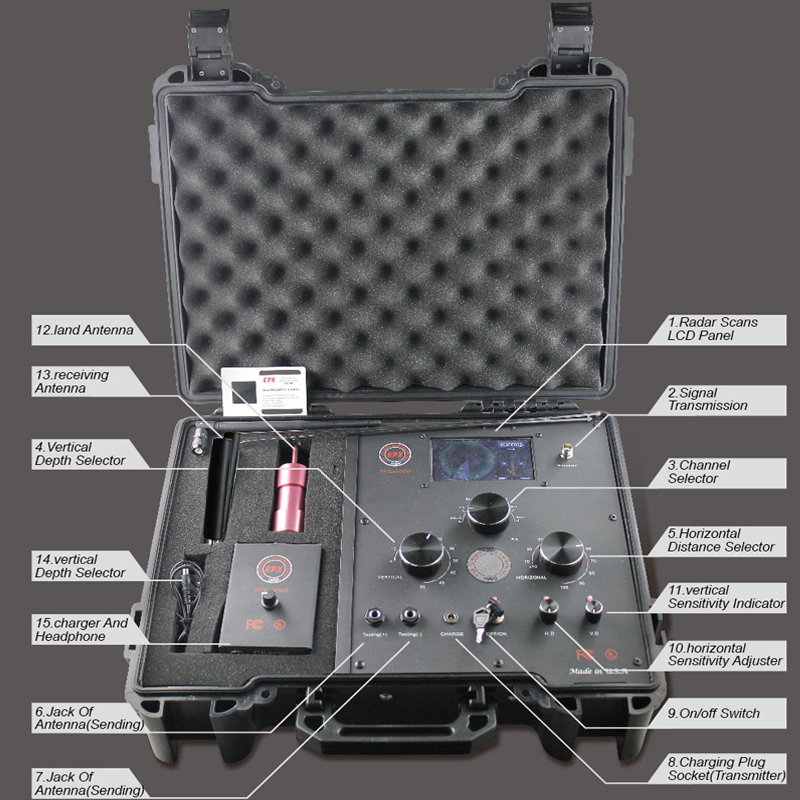

(1) Radar Scans LED Panel  (2) Signal transmission      (3) Select the metal type

(4) Depth adjustment       (5) Range adjustment

(6) Receiving antenna



INSTALLATION

Scanner control installation
    Note: Before the daily operation, the battery must be fully charged! If you do not charge it, the EPX10000 might go wrong. If abnormal , this may be the first time warning that  the battery power is too low and must be charged. If the battery power is charged a whole night, after that, the battery is still no power, you need to replace the battery or charger, or AC power outlet without electricity. If the battery is charged,but it is not full of power,you may need to replace the built-in battery. A new fully charged battery can let EPX10000 continue to work about eight hours.
   Before turning on the scanner, put the EPX10000 transmitter on the ground, the sensor antenna is connected to the corresponding jacks of the transmitter. When open the transmitter,never plug the sensor, if doing it, it will cause damage to the machine.
   Previously used EPX10000 scan,first make all the necessary connections.
1.The sensor is connected to the scanner testing (+) testing (-) on the jack, insert the probe of sensor on the earth
2.The transmit antenna signal transmission is mounted on the corresponding interface
3. with the power key is turned "On / Off” knob, turn on the power. At this time, in the LCD area, power indicator,horizontal trmming,longitudinal trmming indicator lights.
4. at this time, EPX10000 is scanning all selected element . Before starting the detection process, please let it work 3-5 minutes, which will be briefly explained later.
5.after the end of the operation, remember to turn off EPX10000. For ease to use,the instrument requires the use of a smll battery charger is connected to the power line charg instrument.
Receiver - The rotary switch on the top of the receiver panel are the headphone and the antenna jack. When do not use, do not connect the antenna rods with  the receiver! If the antenna rod is saved with it inserted in the receiver , it will cause the battery to drain.

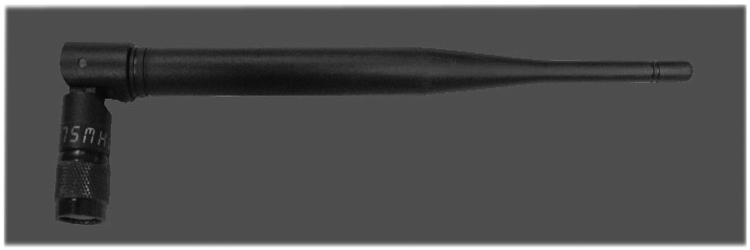

Receiving antenna rod - rod antenna is designed to point out to the operator that he / she has entered a power transmission line between the sensor and the target. Under normal circumstances, the operator should hand held the antenna rod stably and balanced, as high as your waist, and slightly in front of the operator. When hand held the antenna rods, rod antenna should is pointed to the front and parallel to each other and separated by 8-18 inches away. Everyone needs to find their own best distance. It takes trial and error to find. Please remember, the people who operate this device, calm relaxed person  will do better than the tense stiff! When you enter the RF energy line, measured metal,the antenna rod will naturally cross.
And the radar scan pointer will stop in one location. When the antenna and radar cross and the scanner pause, you see the dawn of victory would come.

OPERATION
The key point is that how to hold the molecular frequency detector receiver rods , as well as body position and walk.
    Users must stand in a relaxed posture, feet slightly apart, arms close to the body but not too tight. When holding the receiver rod , the palms and wrists should not be too hard to make it in the hands automatically reach balance, and always parallel to each other. When hand holding the rod, let it be parallel with the ground, in order to increase their sensitivity, or slightly down incline 5-8 °, achieve a better balance (if you are a novice of molecular frequency detector).

The most important thing is the way to practice holding the rod, the rod until the two are no longer mutually "away."
    After the balance of the receiver rods is completed, the operator should learn how to walk, step by step, while maintaining a balance of two rods. This is another trial and error: the pace must be maintained at normal speed, firm and uniform. Each step across the same distance, otherwise the two will be out of balance. Shrugging will lead two out of balance. Shoulders should be maintained at the same height.
Try to practice and keep these conditions.
    The holding of receiving rod, posture and walking exercises should follow the requirements of the target test, the operator should test the target object on the ground to observe the reaction of the receiving rod.
    Once the "Scan Start " message appears on the screen, beginning at a distance of 3 meters at EPX10000 detector loop around, keep the receiving rod be in balance and insert the power module.
If the target object exist, when we walk in the transmission line of the target object and EPX10000 on the ground between them, two receiver antenna will be completely crossed. At such moment,the two shots parallel distance is 15cm. We can double-check to determine whether it is stable signal. So that the operator needs to return to relax, moving again to the transmission line. If the receiving rod is crossed every time, then we can track the target signal in Example 2 in accordance with a signal trace diagram. When the operator through the buried objects will be no crossing. The target objects is located in the point which is between the two rods last crossing  and two rods no crossing.Metal detectors can be used to accurately position the target object. Referring to our example, continue to practice in order to achieve better results.
PRINCIPLE
SCANMASTER Research Center spent years testing various theories, ideas and devices, developed this EPX10000 transmission at last,it is small, powerful, long-distance transmission through soil frequency (RF) signals. 360°comprehensive import signal emitted by the soil. It is because of the inductive energy ,the target can be detected.
     Signal emitted by the scanner power sensor into the ground. If the target is within the range you are looking for, then the signal is absorbed by the target. Indicator rod is inserted into the power amplifier, the receiver circuit becomes complete. The circuit through the operator's body capacitance and inductance components of the power module is formed. When the operator to walk through the transmission line between the scanner and the target, the circuit will play an active role. The RF transmission line inductance and the circuit inductance, capacitance of the operator's  is interacted. At this time, the normal reaction is the rods attract each other. This is actually convey information to the operator: the target is within range of the scanner.
     The scanner's range how far and how depth it is,it depends on a number of change factors. The first foremost and the most important variable is the target size and then the soil conditions (presence of electrolytes) and  how long the target has been underground. Another factor is the chemical changes in the soil around the target, the factors that can enhance the scanner's operating performance. The target is susceptible to oxidation, no matter itself or its container object, the signal will be issued more. The factors due to oxidation, the target of the transmission signal amplified potential to the scanner will be greater.

     There are target within the range, when your feet start into the energy line, under normal circumstances, the antenna rods will attract each other. Under normal circumstances, a single target,the width of energy line is 20 inches.
     Once confirm the energy line, the next step is to use S-line measurement method or a triangulation method to detect the target.

By triangular  to locate the target  object

How to locate in an area inaccessible to use the triangulation?
When a person want to make sure the target position in  water , cliffs and other inaccessible (eg, lakes or streams) place, the scanner is as easy as operating it on the ground. Remember the most important thing is that the operator must be able to enter between the target and the power sensor, so that the antenna rods can indicate any potential targets. Obviously, you can not take the antenna rods underwater. The best way is to speculate, as well as from the shore or on board measuring the target by triangulation, apply some basic knowledge of geometry.
   When operating from the shore, first look inside the scanner if there is any objective measurement range. If something there or not, the first step is moving the scanner, which is the easiest step to operate (north, south, east or west) on four main compass orientation in an orientation. The second record should be 45 °angle between the first record. For example, if the first reading at the target location due west direction, the second reading position in the positive direction of the northwest or the positive direction of the southwest Referring to the figure below.

Please note that due west at the position # 1 is in the west of target. The position # 2 is located on southwest of the target. Considering this situation, we finally have two 45 ° angles and a 90 ° angle. Thus, from the position # 1 to position # 2 is equal to the distance between the distance from the position of a target. As a result, you have to measure the target using the triangulation method, now know the distance from the position # 1 to the target.
   From the ship's operator, the operator, it has some interesting challenges. The first challenge is the deck size. The operator must be able to have a power sensor for the center is about 5'-10 'radius. Second, the probe must be in contact with the power sensor vessel deck. To solve this problem, use a wet towel wrapped around the probe, wet towel in contact with the deck. RF energy along the target direction and the deck surface. Need the buoys, in order to help detect the target by triangulation. With the rest of the process is very similar to the first method.
MAINTENANCE
EPX10000 almost no maintenance. Receiving rods is corroded  by salt and water in the environmental , it is required to use the good quality brass to clean regularly to ensure that the appearance and performance intact.
CONCLUSION
If you are an experienced treasure hunter, you already know at this time, EPX10000 and the  traditional targeting methods are completely different. Scanning in a given area and directions or locate possible goals, EPX10000 is very fast. EPX10000 absorbs the signal underground from the sensor to the target . If there are multiple targets of the same element in a given direction, the maximum target is absorbing the signal transmission. If you remove the larger goal, you can track smaller targets.
If you search for large deposits, such as veins, let the antenna rods in the open scanner can begin work immediately. Open the scanner, check the area immediately. Should not wait too long, because of the smaller veins absorption signal will start, but the absorption amount is small. If this occurs, the short turn off the scanner in a short time(e.g., 15-30 minutes), so that the signals disappear. Then, turn on the scanner again, immediately it is marked through live goal line. The EPX10000 is moved to a new location in order to detect the target by triangulation, as follows:
Remember, first,if your local soil strata with high gold content , the transmitter  is opened longer, you receive the signal line will be more. Second, whether it is gold powder or in blocks, all gold,gold and gold belong to different substances. Must remember that you are using the frequency of the electromagnetic spectrum, all frequencies will be involved. Finally, the frequency of mutual interference may occur. Therefore, it should be noted in the actual operation.
SUMMARY
We have been researching and developing EPX from the 1960s. In 2014,we promote our latest generation of EPX10000. We know it really  working well. There are very few people using the scanner during the initial encounter some difficulties. Before purchasing, usually demonstrate to customers to experience the feeling of hands-on instruction bar. We must remember that the human body is actually the antenna, the power module is a part of the circuit needs adjusting. Without the body (antenna), indicating rods can not work. Without power module, you can splash water (not everyone can splash). For new and old customers we repeatedly say the words, "You have to practice, practice, practice ......, nothing can replace practice."
Browser security identification

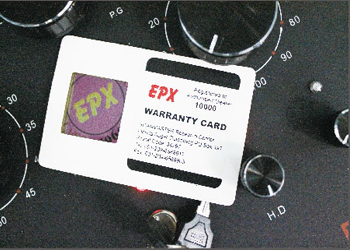

For EPX10000 scanner, the initial purchaser can enjoy 12 months free warranty. For the convenience of our statistical real sales data, if the current owners to provide the original sales receipts, will also enjoy the warranty service. Please note, packaging, collection, sensors, power modules, and a pointing stick and enjoy the date of purchase date 90 days free warranty. For damage due to negligence instruments, repair charges will be the market price. All equipment in need of repair, must be sent to the shipping to us, then return to you,the freight is paid by customer.Unless other agreement. We are not responsible for customs duties and other charges arising by clients.
IDENTIFICATION AND WARRANTY
EPX10000 security identification and warranty certification
 USA dimensional industrial products unique identification code
